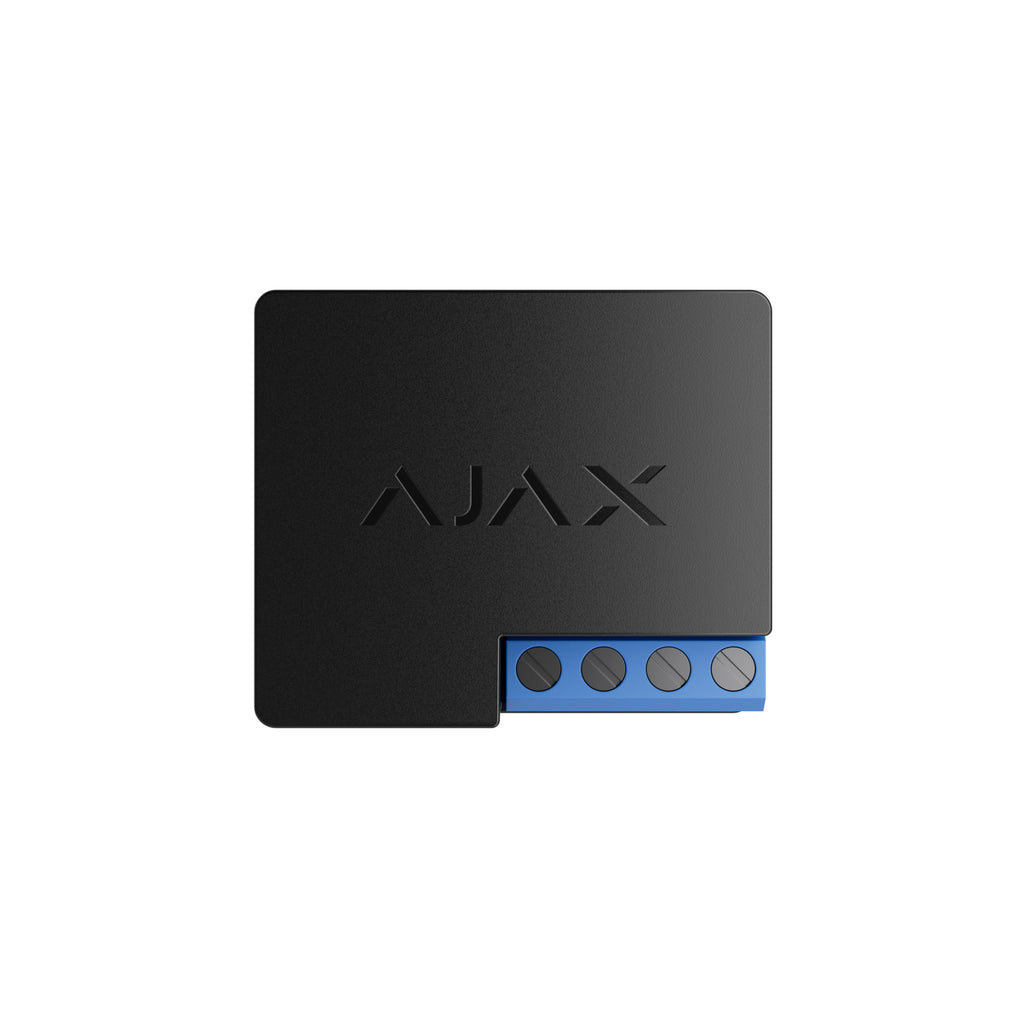

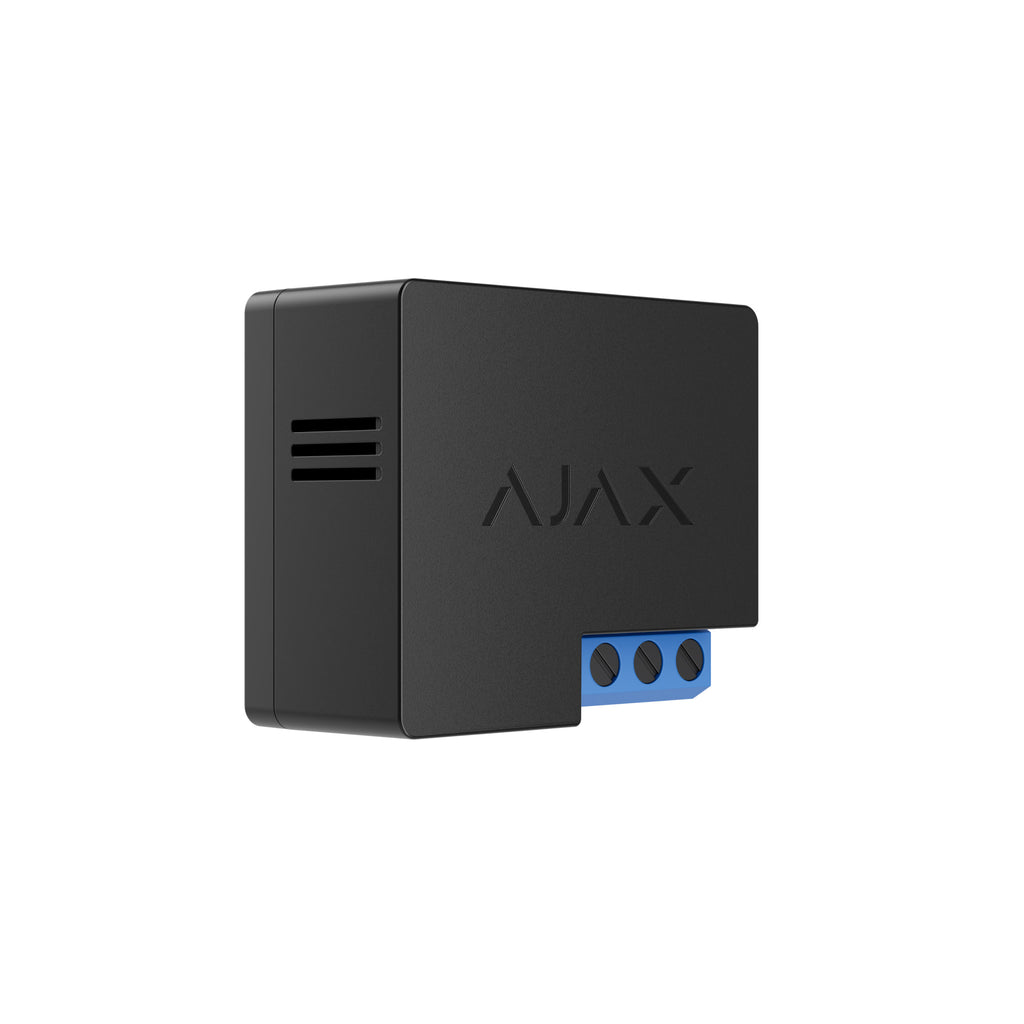

Wireless dry contact relay.

External power supply

7–24 V⎓

The relay does not supply additional power to devices connected to it.

Energy consumption

up to 1 W

In standby mode.

Cross-sectional area of the cable

0.75–1.5 mm² (22–14 AWG)

Maximum resistive load

up to 5 A at 24 V⎓

up to 13 A at 110–230 V~

Maximum inductive/capacitive load

up to 3 A at 24 V⎓

up to 8 A at 110–230 V~

Voltage protection

minimum — 6.5 V⎓

maximum — 36.5 V⎓

Once the supply voltage exceeds the specified levels, the relay turns off automatically.

Temperature protection

over +65 °C at the installation site

over +85 °C inside the relay
