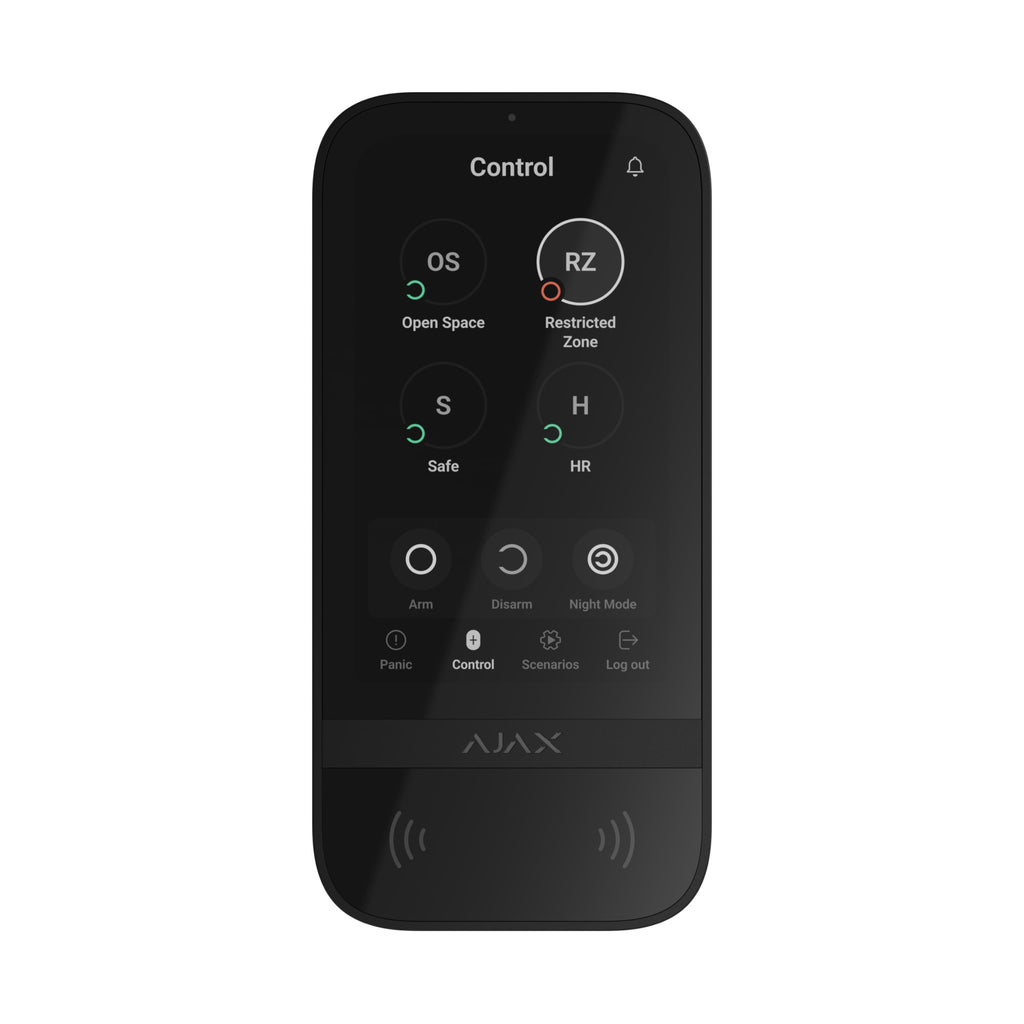

Wireless keypad with a touch screen that supports authentication with smartphones, Pass, Tag, and codes

Panic buttons

• panic
• fire
• auxiliary help

Sending an alarm or calling for help from the separate keypad tab.

Control

• codes
• Tag key fobs
• Pass cards
• smartphone (Bluetooth)

Access codes

up to 200 personal codes

One code per each user. The number of personal access codes depend on the hub model.

1 keypad code

Per each KeyPad TouchScreen.

Duress codes

up to 200 personal codes

One code per each user. The number of personal duress codes depend on the hub model.

1 keypad code

Per each KeyPad TouchScreen.

Codes for unregistered people

up to 99 personal codes

For people who are not registered in the Ajax system. The number of such codes depend on the hub model.

Arming without entering a code

The enabled feature allows the user to arm the system without entering a code or presenting the access device.

Group management

Changing the security mode of the groups to which the user has access from the keypad’s display.

Scenarios management

A separate keypad tab contains up to 6 buttons, and each one can control one automation device or a group of devices.

Indication of malfunctions and security mode

• display
• logo
• sound indication

If enabled, the logo lights up red continuously or when the system or group is armed. KeyPad TouchScreen indication is shown on the display only when it is active. Built-in buzzer notifies about alarms, door openings and entry/exit delays.

Fire alarm muting

Turns off the fire detectors alarm, including the interconnected alarm.

User pre-authorization

When the feature is enabled, viewing the current system status and control screen is unavailable. For access, the user must pre-authorize: enter a code or present a personal access device to the keypad.

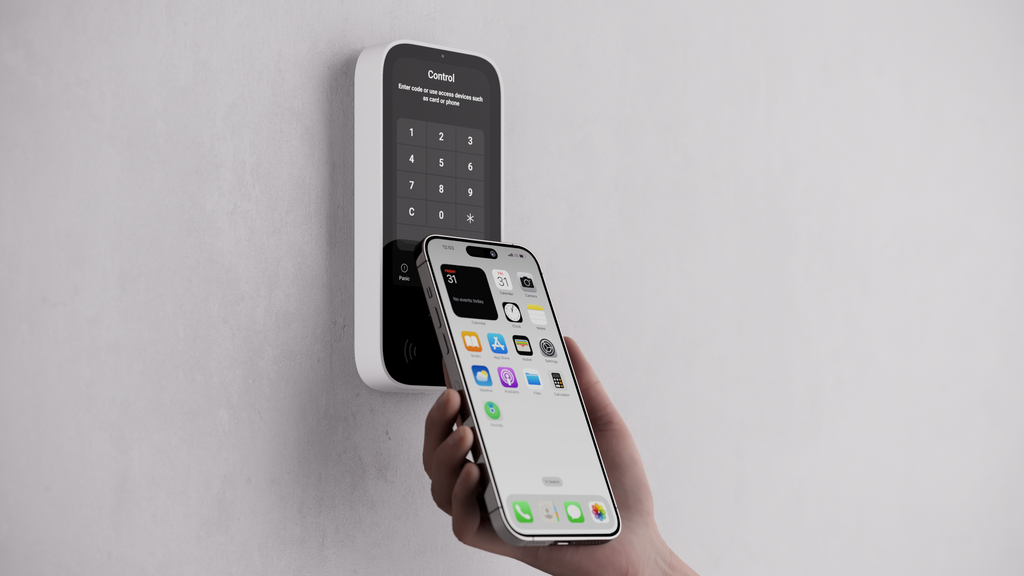

Contactless authorization with a smartphone

A smartphone with the installed Ajax app and Bluetooth Low Energy (BLE) support can be used instead of Tag or Pass to authorize a user. BLE is a radio protocol with low power consumption. The keypad supports Android and iOS smartphones with BLE 4.2 and higher.

Auto screen wakeup

The keypad wakes up automatically when approaching it. The approaching distance can be adjusted in the app.
